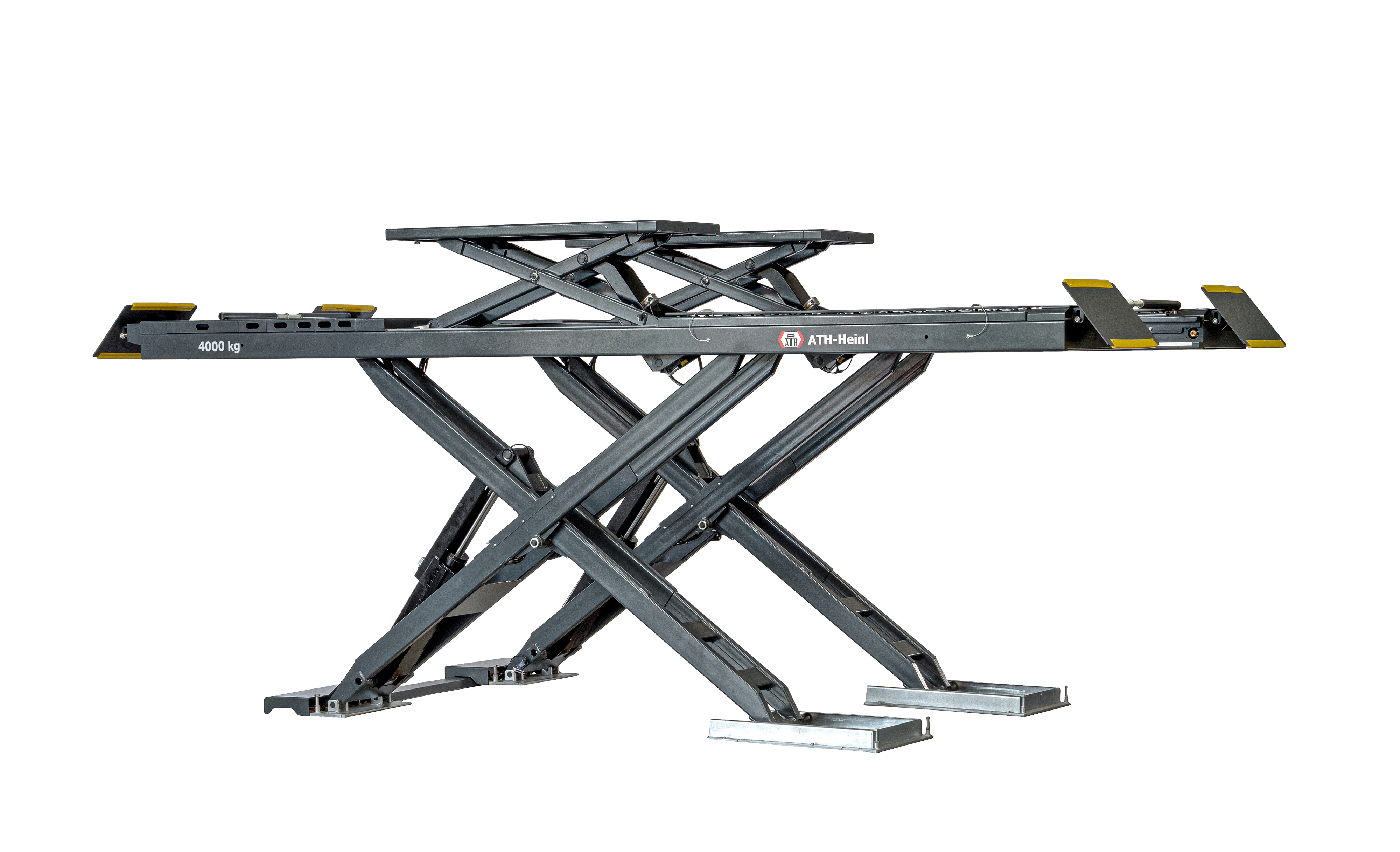

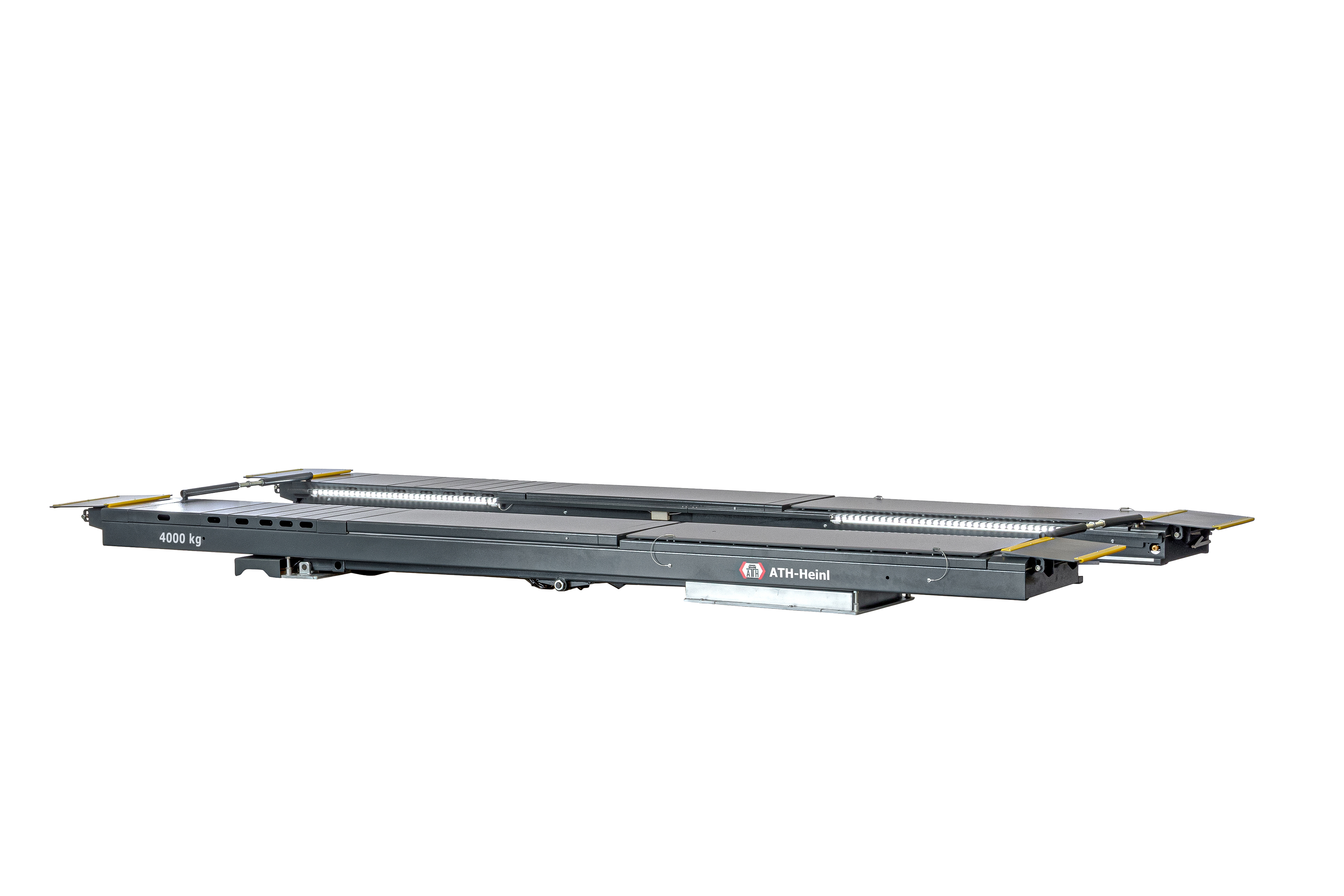

ATH Cross Lift® 40 UGA
Availability:
In stock
SKU
631025
- High-quality and robust hydraulic drive platform scissor lift with minimal maintenance requirements
- Powerful hydraulic unit with load-dependent lowering speed controller
- Suitable for pit installation

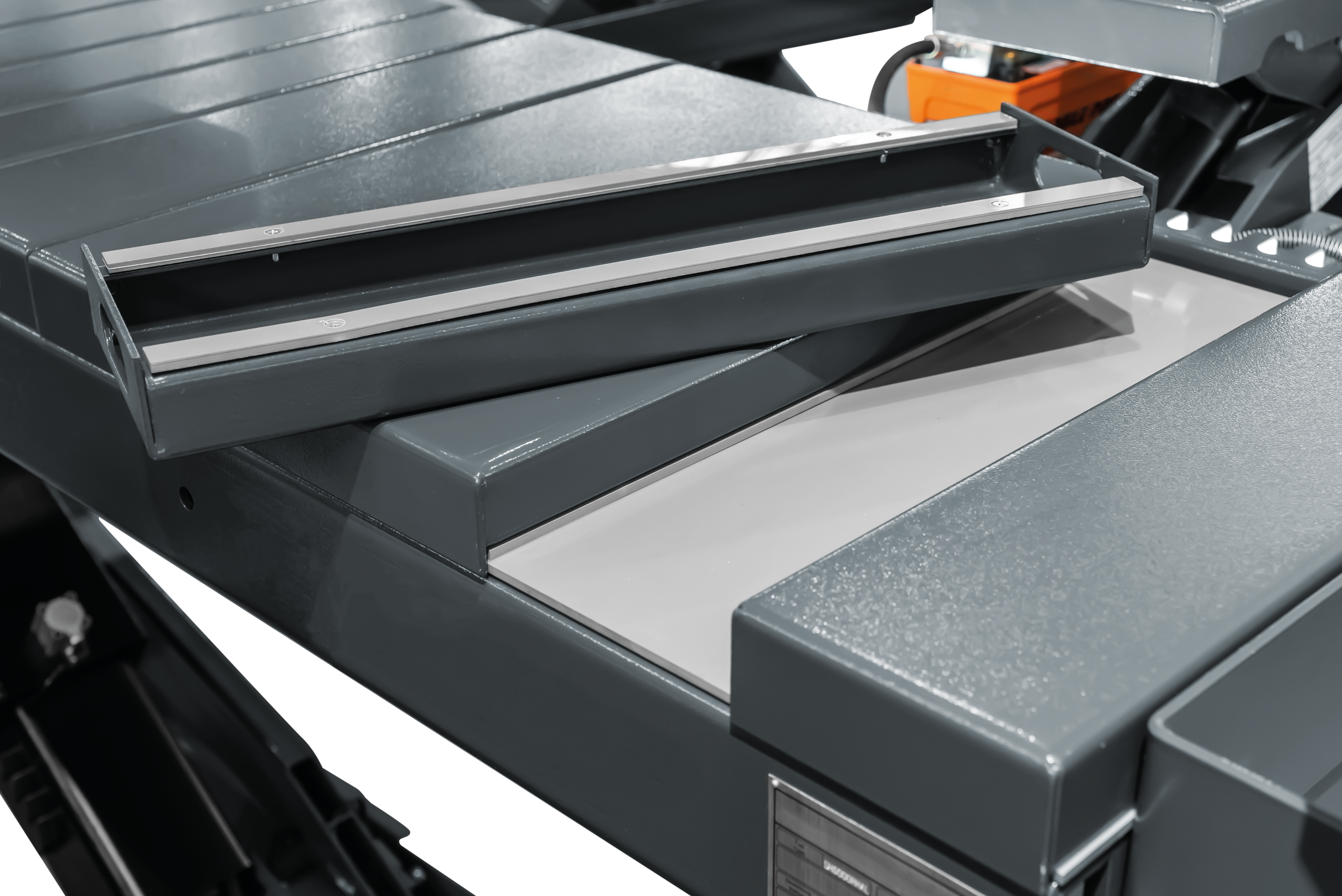

- With recesses for turning plates in the front and mechanically lockable sliding plates in the back, free-wheel lift (loading capacity: 4 t, lifting height: 450 mm), including rails for the optional rolling bridge jack, pluggable platforms-connections beams, incl. metal protections covers and switch for the optional 24V LED Lighting.
- Pneumatic unlocking of the safety locks, CE-Stop and acoustic signal through lowering
- Emergency lowering device for lowering in case of power failure, monitoring of safety synchronization by light barrier.
- Ideally suited for inspection, wheel alignment, repairing jobs and testing stations for driver assistance systems
| Coleur | Anthrazit / Noir |
|---|---|
| Capacite de levage | 4.000 kg |
| Hauteur de levee maxi | 2.160 mm |
| Longueur des chemins | 4.230 mm |
| Largeur des chemins | 600 mm |
| Puissance d’entraînement | 3,5 kW |
| Temps monte / descente | ca. 70 s |
| Tension | 3x 400V / C16A |
| Dalle beton | min. C20/25 4.430 x 2.240 x 310 mm |
| Profondeur d‘installation | 295 mm |
Catalogue
Download le dépliant produit
