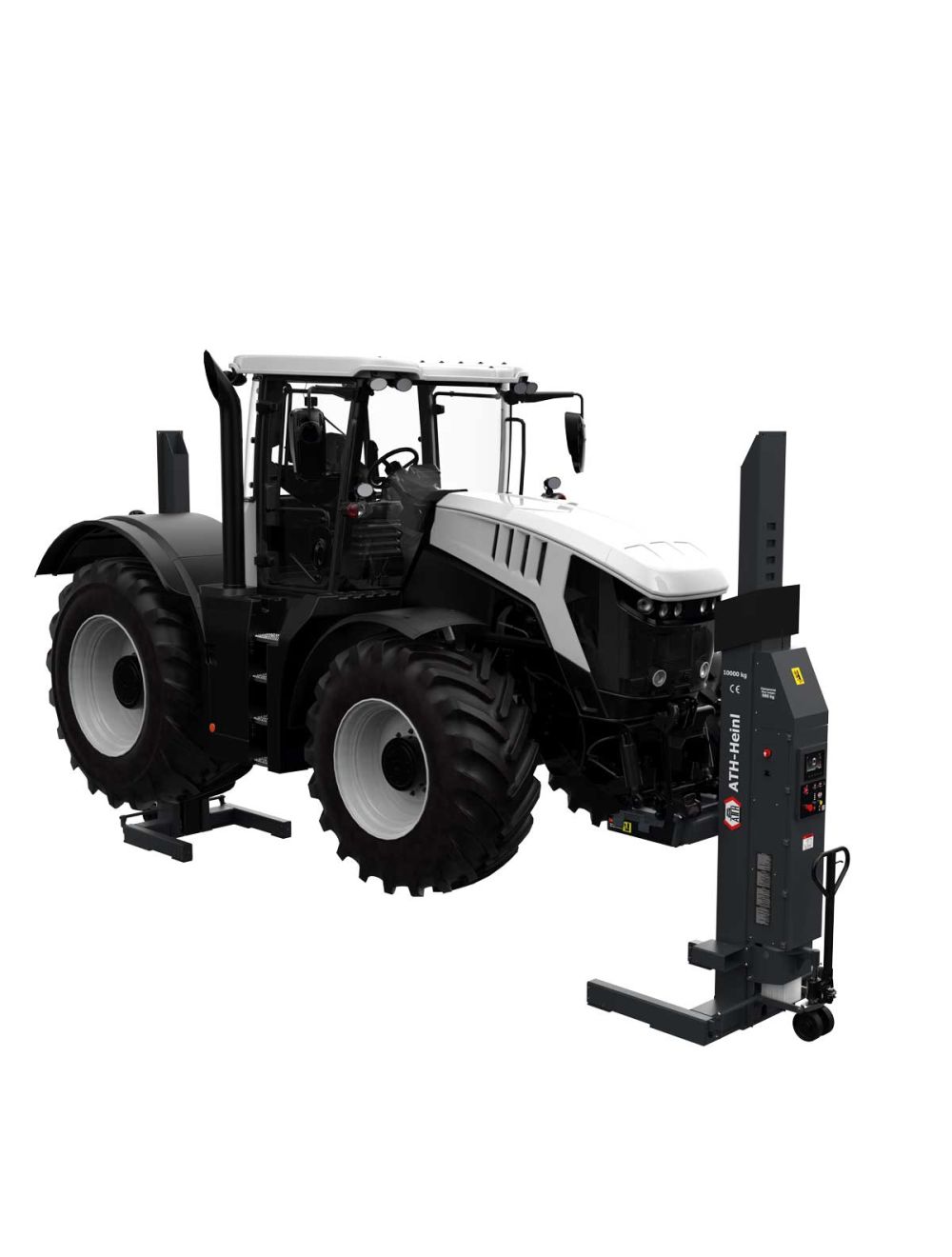

ATH RG®10-2 WB Trac
ATH RG10 WB 2-column lift incl. tractor adapter 710060
Availability:
In stock
SKU
710074
- Electro-hydraulic wheel gripper system with battery operation and wireless control
- Control unit including unit cover on each column for flexible use
- Master unit controls all operating information on each column and an extension up to 16 columns
- Integrated quick charger per column, enables charging during use.
- Mobile kit and forklift attachment on the columns enable a faster change of position
- Safety Control: hydraulic shut-off valve, electronic synchronization monitoring and electromagnetic safety locks
- Safety Lock: ability to lock the load on to the safety mechanism
- Multifunctional mounting via variable wheel fork with individual setting options
| Capacite de levage | 10.000 kg |
|---|---|
| Hauteur de levee maxi | 1.850 mm |
| Hauteur totale | 2.650 mm |
| Largeur de la colonne | 1.145 mm |
| Puissance d’entraînement | 2,2 kW |
| Temps monte / descente | 65s / 55s |
| Tension | DC 24V |
| Communication avec la colonne | wireless |
| Dalle beton | min. C20/25 Dicke: 200 mm |
Catalogue
Download le dépliant produit
