ATH M72Z PLUS

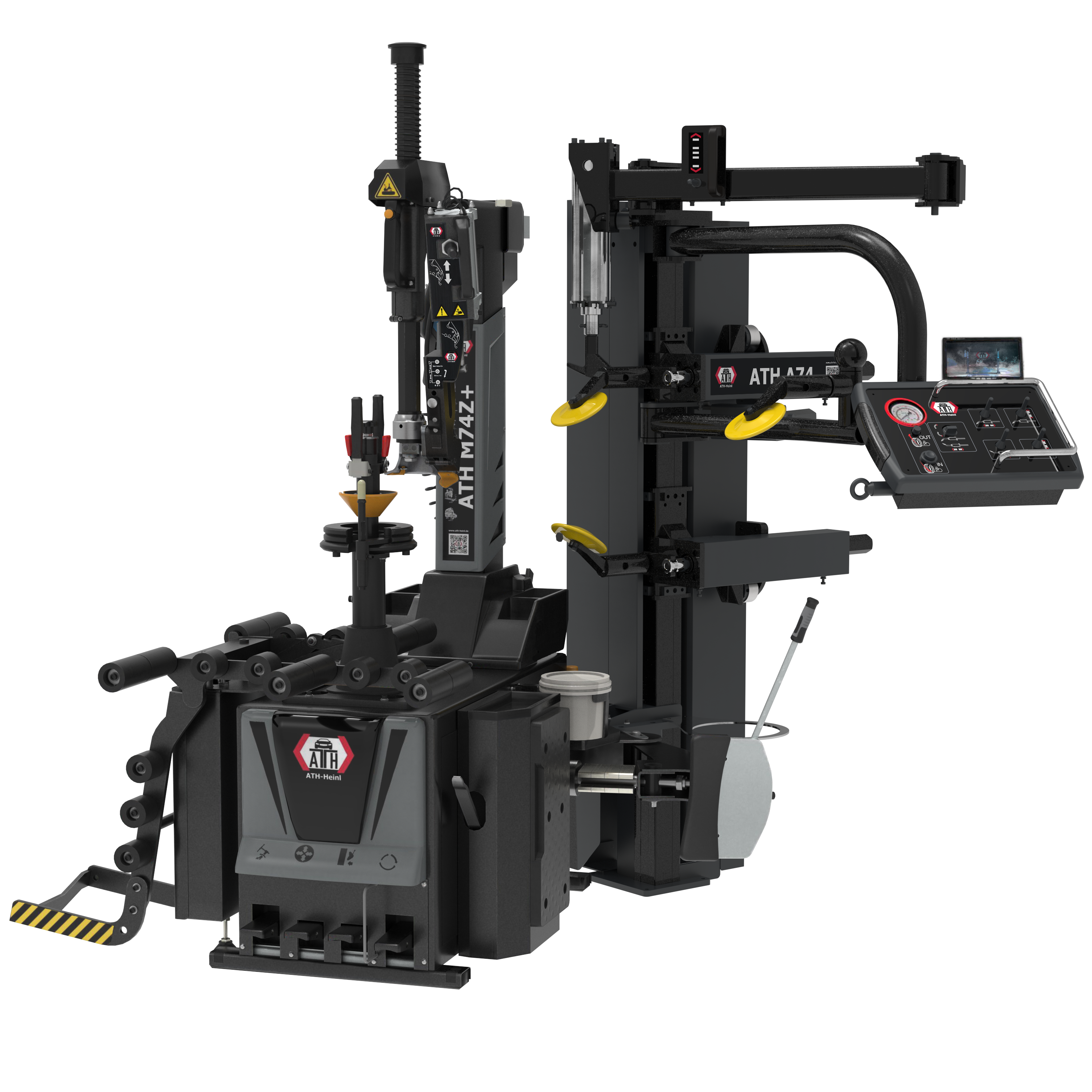

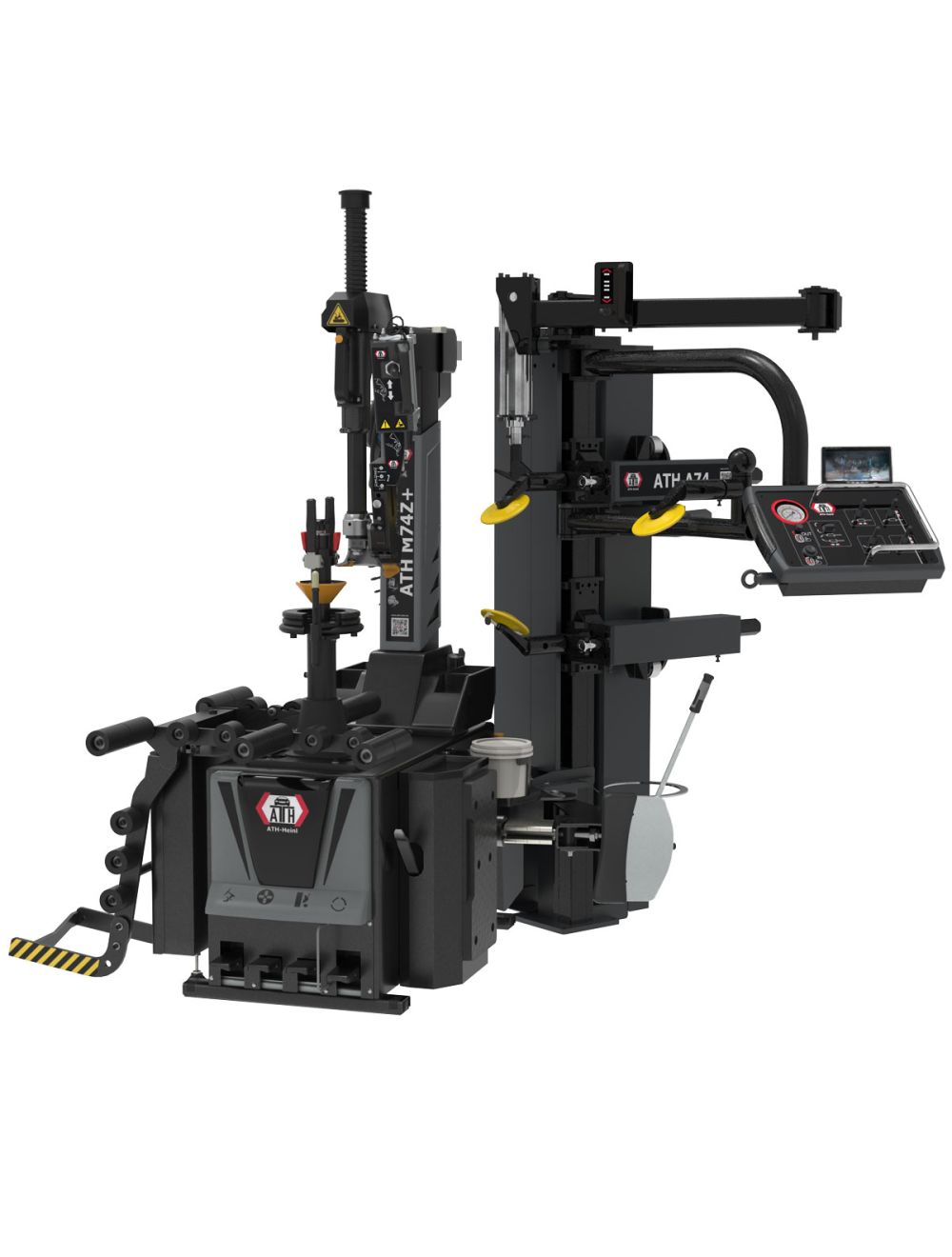

ATH M74Z PLUS
- Rear swivel with pneumatic mounting head clamping including automatic vertical and horizontal rim removal
- Control via ergonomically arranged foot pedals
- Including pneumatic controlled auxiliary assembly arm for effortless and damage-free assembly of low-profile, UHP and run-flat tires
- Height-adjustable center hole mounting with use of a clamping flange and quick-release nut
- Lateral extractor with double-acting aluminium cylinder and anti-jamming system
- Including wheel lift, quick release tool, pneumatic assembly tool and WDK kit
More Information
| Diamètre de la jante maxi |
12 - 26 " |
| Largeur de jante maxi |
4 – 13 " |
| Diamètre de roue maxi |
1.050 mm |
| Raccord d‘air comprimé |
10 bar |
| Plage de détalonnage |
83 – 350 mm |
| Force de détalonnage |
2.500 kg |
| Mount vitesse |
6 and 12 U/min |
| Puissance d’entraînement |
0,75 / 0,90 kW |
| Tension |
3x 400V / C16A |
| Niveau sonore |
70 dB(A) |
